Description

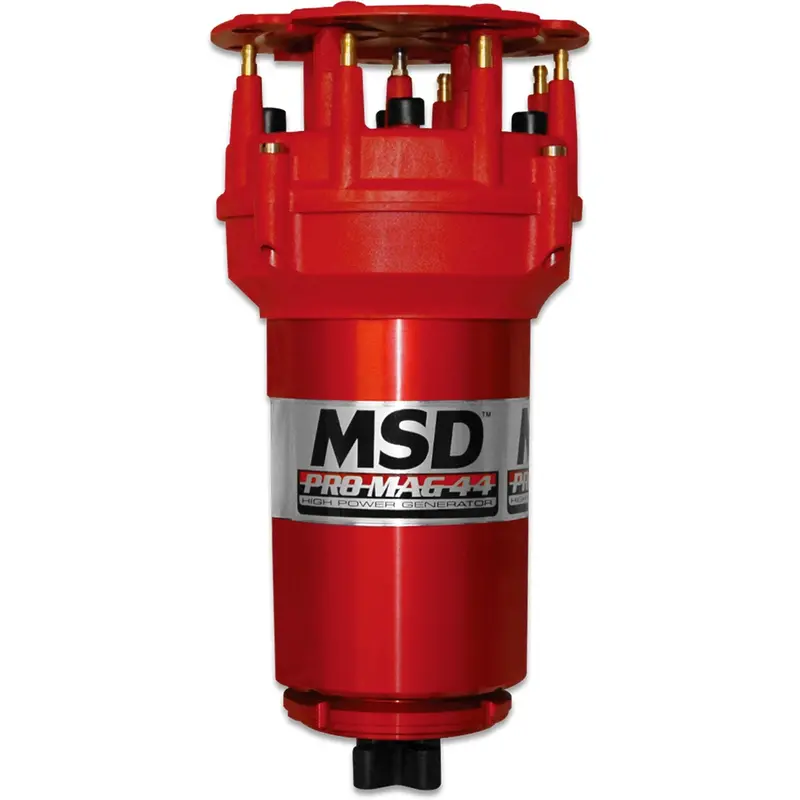

The Pro Mag 44 is the mother of all magnetos. With no magnets to recharge, no points to replace and by producing an amazing 44 A of primary current, it’s no wonder that the Pro Mag 44 is the choice of top fuel dragster and funny car teams! The 44 utilizes a proprietary combination of rare earth magnets and windings to produce this incredible energy. To accurately trigger all of this energy, a magnetic pickup is mounted in the lower base of the generator and is triggered by one of eight precision paddles on a reluctor mounted to a 0.500 In. shaft. This pickup replaces weak and inaccurate points and never requires replacement or adjusting. When the pickup is triggered, the signal is sent to the electronic points box where the spark duration is controlled then directed to the 44’s coil. The design also allows you to incorporate optional accessories such as a crank trigger, timing retard control or a rev limiter for improved consistency and safety.
Resources
Installation Instructions
Resources
Installation Instructions
Specifications:
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Generator Bracket |
| Description_DES | Pro Mag Generator Band Clamp |
| Description_EXT | Pro Mag Generator Band Clamp; For Generator PN[81394]; Clock Wise Rotation; Big Cap; |
| Description_FAB | Pro Mag Generator Band Clamp |
| Description_INV | Generator;Pro Mag;44A;Mall Dr/CW;Big Cap |
| Description_LAB | Proposition 65 |
| Description_MKT | The Pro Mag 44 is the mother of all magnetos. With no magnets to recharge, no points to replace and by producing an amazing 44 A of primary current, it’s no wonder that the Pro Mag 44 is the choice of top fuel dragster and funny car teams! The 44 utilizes a proprietary combination of rare earth magnets and windings to produce this incredible energy. To accurately trigger all of this energy, a magnetic pickup is mounted in the lower base of the generator and is triggered by one of eight precision paddles on a reluctor mounted to a 0.500 In. shaft. This pickup replaces weak and inaccurate points and never requires replacement or adjusting. When the pickup is triggered, the signal is sent to the electronic points box where the spark duration is controlled then directed to the 44’s coil. The design also allows you to incorporate optional accessories such as a crank trigger, timing retard control or a rev limiter for improved consistency and safety. |
| Description_SHO | Generator Bracket |
| finish | As Cast |
| height | 8.3 |
| length | 18.6 |
| LTL | N |
| RPM | 12000 |
| Spark Energy | 800 mJ per spark |
| Style | Straight |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| weight | 10.45 |
| width | 8.6 |
